Product Feature
Product Introduction

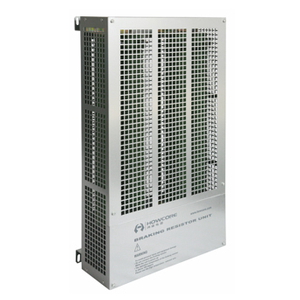

usable in a circuit of inverter to control the motor deceleration and braking. Usually an external resistor can consume the excess energy from the motor and load to protect the overvoltage crowbar of the inverter. In industrial systems, the inverter braking resistors are widely used in the fields of motor starting, braking and speed regulating, inverter braking, inverter braking, braking of large lifting machinery, braking of material handling mechanisms, etc. They can run both in short-term intermittent cycles and continuous cycles
Current Range;10-5000A
Voltage Range;220-1140V
Applicable Standards
GB/T5729-1994
Technical Parameter
Product Size
规格 | 功率(KW) | 尺寸 L±1mm | W | H | H1 |
SRA | 20KW | 700 | 500 | 750 | 80 |
SRA | 30KW | 700 | 500 | 1050 | 80 |
SRA | 40KW | 700 | 500 | 1350 | 80 |
SRA | 50KW | 700 | 500 | 1650 | 80 |
SRA | 51-80KW | 820 | 700 | 1630 | 100 |
SRA | 81-104KW | 820 | 700 | 1980 | 100 |
*Remark:Dimension can be customization
