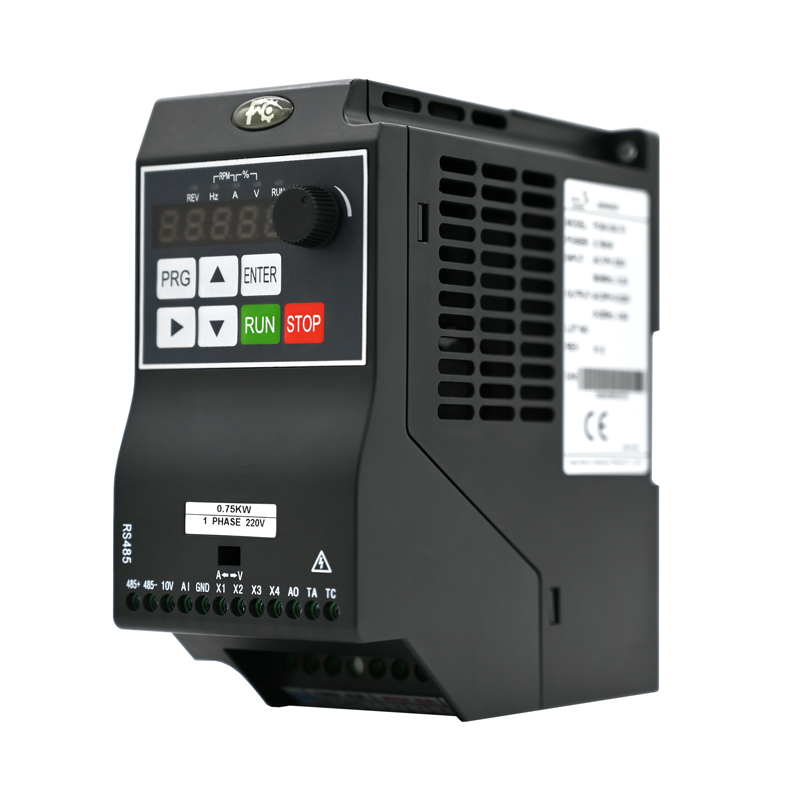

FC80 mini economic inverter is positioned as a common application of small power OEM matching market, adopting vector V / F control technology. This series of inverters have many common functions, such as PID, multi-stage speed, DC braking, MODBUS communication, etc., with complete functions and smaller volume, which can further reduce the installation space.
Praduct Feature
Product Selection
Technical Parameter
Product Feature
1. V/F control;
2.5 circuits DI, 1 circuits AI, 1 relay control;
3. Exquisite figure, compact structure;
Product Selection
Item No.
Adaptable Motor (kW)
Input Current (A)
Output Current (A)
Rate Capacity (kVA)
W
(mm)
H
(mm)
D
(mm)
W1
(mm)
H1
(mm)
Diameter
(mm)
GW
(kg)
1 Phase Input and 3 Phase Output 220V (-15%~+15% Tolerance)
FC80-2S-0.4
0.4
5.4
2.3
1
68
146
131
56
130
Ø5
1
FC80-2S-0.75
0.75
8.2
4
1.5
68
146
131
56
130
Ø5
1
FC80-2S-1.5
1.5
14
7
3
68
146
131
56
130
Ø5
1
3 Phase Input and 3 Phase Output 380V (-15%~+15% Tolerance)
FC80-4T-0.75
0.75
3.5
2.1
1.5
68
146
131
56
130
Ø5
1
FC80-4T-1.5
1.5
5
3.8
3
68
146
131
56
130
Ø5
1
FC80-4T-2.2
2.2
5.8
5.1
4
68
146
131
56
130
Ø5
1
Technical Parameter
Specifications
Control mode
V/F
Starting torque
0.5Hz/150%（V/F）
Speed regulation range
'1:100
Speed stabilization accuracy
±0.5%
Overload capacity
150% rated current 60s；180% rated current 3s
Running
Input voltage range
220V/380V±15%
Input frequency range
50/60Hz，Fluctuation range: ±5%
Output voltage range
0 ~ 220V， 0 ~ 380V
Output frequency range
0 ~ 320Hz
Running
AI
1 circuit ，1 circuit 0-10V（4~20mA）
DI
5 circuits
AO
Null
DO
Null
Relay output
1 circuit (Normally open)
R S485 interface
1 circuit
Power supply
1 circuit 10V
Environment
Altitude
Lowerthan 1000m, if itis higherthan 1000m, the derating will be 1% for every 100m increase.
Ambient temperature
'－10℃～＋40℃ (the ambient temperature is 40 ℃ ~ 50 ℃, please derate in use)
Humidity
Less than 95% RH, no water condensation.
Vibration
Less than 5.9m/s²（0.6g）
Storage temperature
'－2 0℃～＋6 0℃
