Product Feature

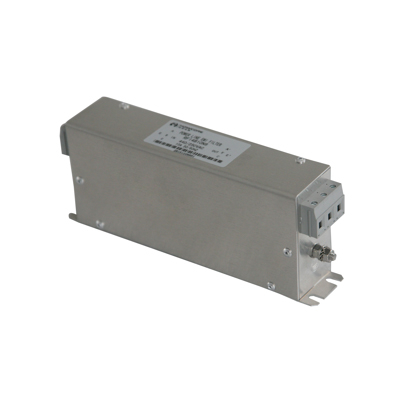

Product Introduction
1.Reducing the conducted emission from inverter to power network.
2.Exception attenuation performance from 150kHz~30MHz
3.Compact, space-saving design, optimized forindustrial machinery
4.Increases also the immunity if operated directlyon the mains input
5.N99 for the use of copper bar, other terminals
Typical Applications
Mainly industrial equipment, machinery, machinetools and diverse process auto- mation systems withthree-phase and neutral electricity supply. Due to theoutstanding attenuation performance, The series is alsothe first choice for noisy power supplies, renewableenergy applications, highpower office equipment andfurther three-phase and neutral devices. Because ofthe relatively low leakage current, The series may evenbe used for some medical devices.
| 滤波器型号 | 额定电流（A) | 漏电流（A) | 能量损耗（W） | 端子类型 |
| RFI4NC8N06 | 8 | ＜1 | 3.2 | 端子 |
| RFI4NC16N06 | 16 | ＜1 | 6.5 | 端子 |
| RFI4NC25N10 | 25 | ＜1 | 11.8 | 端子 |
| RFI4NC36N10 | 36 | ＜1 | 15.3 | 端子 |
| RFI4NC50N16 | 50 | ＜1 | 17.4 | 端子 |
| RFI4NC65N16 | 65 | ＜1 | 18.9 | 端子 |
| RFI4NC100N35 | 100 | ＜1 | 23.6 | 端子 |
| RFI4NC130N50 | 130 | ＜1 | 28.5 | 端子 |
| RFI4NC160N95 | 160 | ＜1 | 31 | 端子 |
| RFI4NC200N95 | 200 | ＜1 | 47.4 | 端子 |
| RFI4NC300N99 | 300 | ＜1 | 20.3 | 铜排 |
| RFI4NC400N99 | 400 | ＜1 | 36 | 铜排 |
| RFI4NC600N99 | 600 | ＜1 | 64.8 | 铜排 |
Product Selection
Technical Data
| 1.Rated voltage： | 440/250 VAC |
| 2.Operating frequency： | 50Hz |
| 3.Rated current： | 10A~600A（@50℃） |
| 4.High potential test voltage： | P-E 2100VDC/2sec P-P 2100VDC/2sec |
| 5.Temperature range： | -25℃~100℃（25/100/21） |
| 6.Design corresponding to： | IEC/EN 60939、UL1283 |
| 7.Typical work frequency： | 150kHz~30MHz |
Technical Parameter
Product Size (单位：mm）
| 电流（A）/代号 | A | B | C | D | E | F | G | H | U | V | W | X | Y1 | Y2 | Z |
| 8~16 | 160 | 180 | 15.5 | 80 | 65 | 100 | 5.5 | M5 | |||||||
| 25~36 | 160 | 180 | 35 | 100 | 75 | 115 | 5.5 | M5 | |||||||
| 505 | 190 | 210 | 35 | 110 | 90 | 125 | 6.4 | M6 | |||||||
| 100 | 230 | 120 | 38.5 | 125 | 150 | 163 | 6.4 | M8 | |||||||
| 130 | 250 | 200 | 43 | 140 | 157 | 170 | 6.4 | M8 | |||||||
| 160~200 | 280 | 220 | 52 | 170 | 166 | 180 | 6.4 | M8 | |||||||
| 300 | 325 | 240 | 58 | 150 | 195 | 220 | 11 | M10 | 120 | 4 | 25 | 12.5 | 72 | 43 | 11 |
| 400 | 325 | 240 | 58 | 150 | 195 | 220 | 11 | M10 | 120 | 6 | 25 | 12.5 | 72 | 43 | 11 |
| 600 | 325 | 240 | 58 | 150 | 195 | 220 | 11 | M10 | 120 | 8 | 25 | 12.5 | 72 | 43 | 11 |

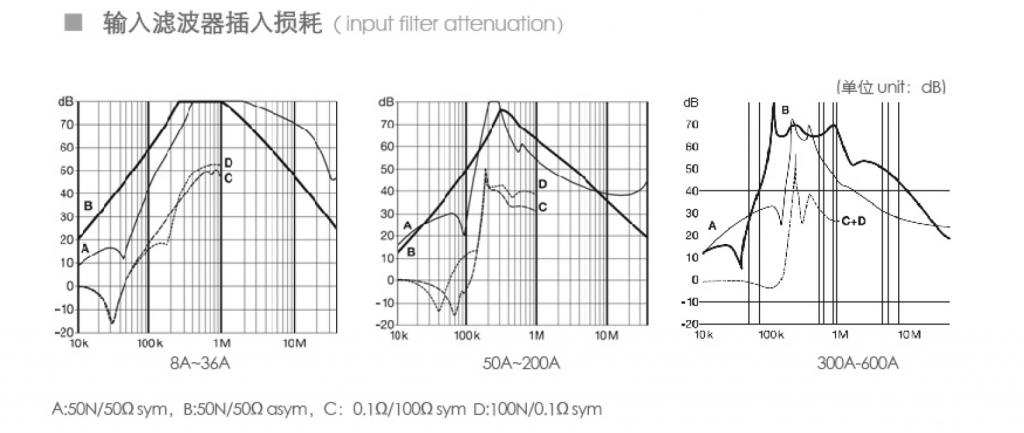

Filter Input/output Connector Cross Sections)
| -N6 | -N10 | -N16 | -N35 | -N50 | -N95 | |
| Flex wire | 0.5~6 | 0.5~10 | 1~16 | 10~35 | 16~50 | 25~95 |
| AWG number | AWG8-26 | AWG6-24 | AWG4-20 | AWG2-8 | AWG6-1/0 | AWG4-4/0 |
| Recommended torque | 1.36 | 1.36 | 2.71 | 4.41 | 4.41 | 19.2 |
